Dedicated Formula 1 Racing Simulator Rig: The Ultimate Immersion Guide So, you're obsessed with Formula 1 and crave the most realistic racing simulation experience possible?

So, you're obsessed with Formula 1 and crave the most realistic racing simulation experience possible? You've come to the right place. As a seasoned PC builder and sim racer deeply entrenched in the world of F1, I'm going to walk you through creating an unrivaled F1 sim rig, perfectly tailored for F1 23 and Assetto Corsa (with the essential RSS Formula Hybrid 2023 mod). This guide meticulously balances specifications, performance, and cost, all with laser-like precision. Get ready to feel every curb, every G-force, and every nuance of piloting a modern Formula 1 car.

Purpose: Chasing the Ultimate F1 Immersion

This build has one singular purpose: to deliver the most authentic Formula 1 racing simulation experience possible. We're not just aiming for "good enough." We're obsessed with replicating the feeling of piloting a modern F1 car with unwavering precision. This means prioritizing realistic force feedback, data-driven telemetry, and a visual experience that puts you right in the cockpit. Our focus will be on F1 23 and Assetto Corsa, utilizing the RSS Formula Hybrid 2023 mod for the latter. This is about more than just playing a game; it’s about blurring the lines between reality and simulation.

Core Components: The Heart of the Beast

Choosing the right components is crucial for achieving peak performance and realism. Here's a breakdown of the core PC components that will power your F1 simulation experience:

• CPU: AMD Ryzen 7 7800X3D: The king of gaming CPUs. Its massive L3 cache provides exceptional frame rates and smooth performance, even in CPU-intensive simulations like F1 23.
• GPU: NVIDIA GeForce RTX 4080: A powerhouse graphics card that will drive high refresh rates and stunning visuals on triple monitors or VR. It handles ray tracing and advanced graphics settings with ease.
• RAM: 32GB DDR5 6000MHz CL30: Ensures smooth multitasking and eliminates stuttering, even with multiple applications running in the background (game, telemetry software, streaming). Low latency (CL30) is crucial for optimal performance.
• Motherboard: ASUS ROG Strix B650E-F Gaming WiFi: A robust and feature-rich motherboard that supports the Ryzen 7 7800X3D and provides ample connectivity for all your peripherals. The "E" designates PCIe 5.0 support, allowing future upgrades to next-gen NVMe drives and GPUs.
• Storage: 2TB NVMe PCIe 4.0 SSD (Samsung 990 Pro): Lightning-fast storage for quick loading times and seamless performance. 2TB provides plenty of space for games, mods, and recordings. The Samsung 990 Pro is consistently rated among the fastest PCIe 4.0 SSDs.
• PSU: 1000W 80+ Gold Certified (Corsair RM1000x): Provides ample power for the system, even with overclocking. The 80+ Gold certification ensures efficient power delivery and reduces heat. Corsair's RMx series is known for its reliability and quiet operation.
• Case: Mid-Tower ATX Case (Fractal Design Meshify 2 XL): Offers excellent airflow and plenty of space for components, ensuring optimal cooling. The Meshify 2 XL is known for its stylish design and ease of building.

Fractal Design Meshify 2 XL, an excellent case for showcasing your PC components and ensuring optimal airflow for cooling.

Dedicated Racing Sim Hardware: Where the Rubber Meets the Road

This is where the magic truly happens. Investing in high-quality sim racing hardware is essential for achieving the level of realism we're after.

• Wheelbase: Fanatec Podium Racing Wheel F1: A direct drive wheelbase provides unparalleled force feedback fidelity and responsiveness. The Fanatec Podium Racing Wheel F1 is specifically designed for Formula 1 simulation, offering a smooth and powerful experience.
• Wheel Rim: Fanatec ClubSport Steering Wheel F1 Esports V2: Replicates the look and feel of a modern Formula 1 steering wheel, complete with customizable buttons, rotary encoders, and an integrated display.

The Fanatec ClubSport Steering Wheel F1 Esports V2, delivering the look and feel of a genuine Formula 1 steering wheel.

• Pedals: Simucube ActivePedal: These are a game-changer. Offering active resistance and haptic feedback, the Simucube ActivePedal system realistically simulates the brake pedal feel of a Formula 1 car, including ABS and lock-up sensations. This is crucial for mastering trail braking.
• Shifter (Optional): Fanatec ClubSport Shifter SQ V 1.5: While modern F1 cars don't have manual shifters, this is essential for driving classic F1 cars in Assetto Corsa. The ClubSport Shifter SQ V 1.5 offers both H-pattern and sequential shifting modes.

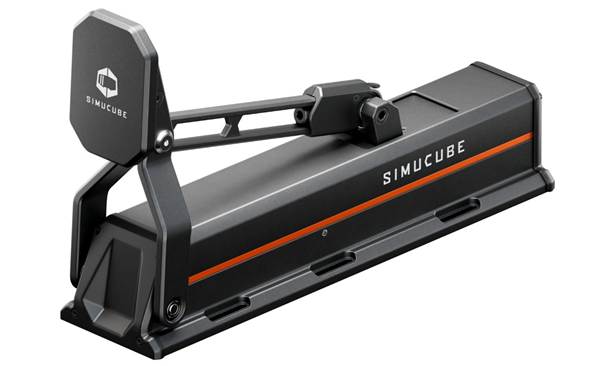

The Simucube ActivePedal brake pedal, offering unprecedented realism in simulating braking dynamics.

Peripherals: Seeing is Believing (and Feeling!)

The visuals and audio are just as important as the controls when it comes to immersion. You have two excellent options:

• Triple Monitor Setup: Three 27-inch curved 1440p displays (Samsung Odyssey G5) provide a wide and immersive field of view. The curved design enhances the sense of depth and wraps you in the action.
• Valve Index VR Kit: Virtual reality takes immersion to a whole new level. The Valve Index offers high refresh rates, excellent tracking, and comfortable ergonomics. VR provides a true sense of presence in the car.

Optional Add-ons: Enhancing the Experience

These add-ons aren't essential, but they can significantly enhance the overall experience:

• CPU Cooler: Noctua NH-D15: Keeps the Ryzen 7 7800X3D running cool and quiet, even under heavy load.
• High-Quality Gaming Headset: Audeze Maxwell: Delivers exceptional audio fidelity and immersive soundscapes. Crucial for hearing subtle audio cues and communicating with other racers.
• Buttkicker Gamer2 (mounted to the seat): Adds tactile feedback, allowing you to feel engine vibrations, road textures, and impacts.
• Wind Simulator (Sim Racing Studio Wind Simulator): Simulates the feeling of wind rushing past your face, further enhancing immersion.
• Tactile Transducers (Dayton Audio BST-1): Similar to the Buttkicker, but more versatile in placement. Can be mounted to the pedals, wheel, or seat to provide localized tactile feedback.
• Next Level Racing Motion Platform V3: The ultimate immersion tool. The Next Level Racing Motion Platform V3 simulates the movement of the car, including bumps, G-forces, and traction loss. This is the closest you can get to actually being in an F1 car.

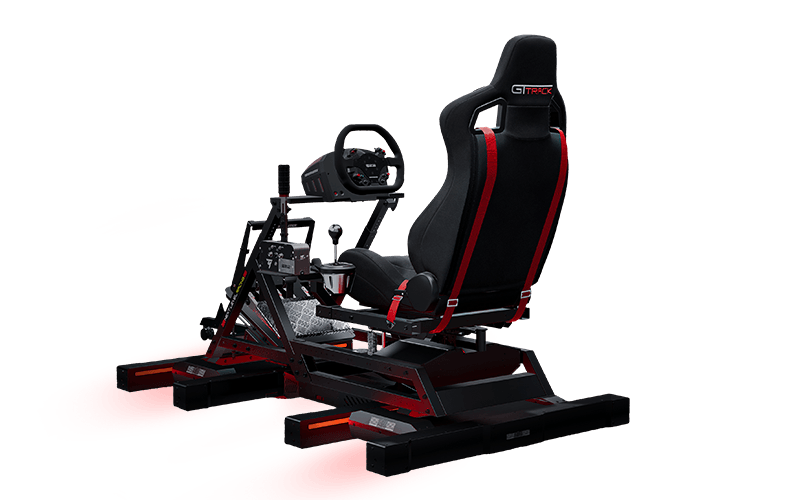

The Next Level Racing Motion Platform V3, an extraordinary addition providing a whole other level of realism.

Software and Integration: Bringing it All Together

Hardware is only half the battle. Software integration and proper tuning are crucial for extracting the maximum performance and realism from your sim rig.

• SimHub: This indispensable tool allows you to create custom telemetry displays, immersive lighting setups, and bass shaker integration.

  • Formula 1-Specific SimHub Dashboards: Look for pre-made dashboards or create your own to display essential telemetry data like tire temperatures, brake bias, fuel levels, and DRS status.

SimHub dashboards showing comprehensive telemetry data for advanced race strategy and optimization.

• Force Feedback (FFB) Tuning: Proper FFB tuning is essential for feeling the car and track accurately.

  • F1 23: Experiment with the in-game FFB settings, focusing on "On Track Effects" and "Off Track Effects." Start with low gain settings and gradually increase them until you can feel the subtle details of the track without clipping.

  • Assetto Corsa (RSS Formula Hybrid 2023): This requires more advanced tuning. Start by adjusting the "gain" and "filter" settings in the Assetto Corsa launcher. Then, fine-tune the FFB settings within the RSS Formula Hybrid 2023 car setup.

  • Telemetry Interpretation for FFB Optimization: Use telemetry data to identify areas where the FFB is clipping (i.e., reaching its maximum force output). Reduce the gain in those areas and increase the gain in areas where the FFB is weak. This will maximize detail and prevent the loss of important information.

• Triple Monitor or VR Setup:

  • Triple Monitor: Implement NVIDIA Surround or AMD Eyefinity to create a seamless panoramic display. Be sure to adjust the bezel correction settings to account for the physical bezels between the monitors. Field of view (FOV) is crucial; use an FOV calculator to determine the correct setting based on your monitor size and viewing distance.
  • VR Setup: Configure the Valve Index VR Kit to minimize latency and maximize visual clarity. Experiment with supersampling settings to increase image resolution. Use OpenXR for improved performance and compatibility.

• Peripheral Calibration:

  • Fanatec Podium Racing Wheel F1: Calibrate the wheel in the Fanatec Control Panel to ensure accurate steering input.
  • Simucube ActivePedal: Calibrate the pedals in the Simucube software to ensure accurate brake and throttle input. Adjust the brake force curve to your liking.
  • Fanatec ClubSport Shifter SQ V 1.5: Calibrate the shifter in the Fanatec Control Panel to ensure accurate gear selection.

• Next Level Racing Motion Platform V3: Install and configure the motion platform according to the manufacturer's instructions. Experiment with different motion cue profiles to find the settings that provide the most realistic and immersive experience. Focus on dialing in the "traction loss" and "road texture" cues.

Formula 1 Driving Techniques: Mastering the Art of Speed

Having the right equipment is only half the battle. You also need to master the driving techniques used by Formula 1 drivers.

• Trail Braking: Use the Simucube ActivePedal to practice trail braking. Gradually reduce brake pressure as you turn into the corner, maximizing grip and minimizing understeer.
• DRS Activation: Program the DRS button on your steering wheel for split-second activation during races in F1 23. Practice using DRS effectively to overtake opponents and defend your position.
• ERS Management: Optimize energy deployment during a race using real-time telemetry data in F1 23 and Assetto Corsa with SimHub. Learn to anticipate when to deploy ERS for maximum acceleration and when to conserve energy for later in the race.

Performance Expectations: Pushing the Limits

With this setup, you can expect exceptional performance in both F1 23 and Assetto Corsa.

• Triple Monitor (Samsung Odyssey G5): You should be able to run both games on Ultra settings at 1440p with a stable 90+ FPS.
• Valve Index VR Kit: Aim for a stable 90 FPS with high graphics settings. You may need to reduce some settings to maintain a smooth frame rate.

Gameplay screenshot from F1 23 at Monza. Expect smooth gameplay at high settings on the recommended hardware.

• Benchmarks: Expect similar performance to benchmarks found on YouTube featuring the Ryzen 7 7800X3D and RTX 4080. Search for "[Game Name] RTX 4080 Ryzen 7 7800X3D Benchmark" to get a realistic expectation of performance. Even in chaotic scenarios like racing with 20 AI opponents on the Monza circuit, you should maintain a playable frame rate.

Cost/Value Analysis: Breaking Down the Investment

A fully-equipped F1 sim rig like this represents a significant investment. Here's a rough estimate of the total cost:

• PC Components: $2500 - $3000
• Wheelbase and Wheel Rim: $2000 - $2500
• Pedals: $1500 - $2000
• Triple Monitors or VR Kit: $900 - $1200
• Optional Add-ons: $500 - $3000+

Total: $7400 - $11700+

Is it worth it? That depends on your level of passion and commitment. Compared to alternative sim racing options, this setup provides a level of realism and immersion that is unmatched.

• Areas to Compromise: If you need to reduce costs, consider downgrading the GPU to an RTX 4070 Ti, opting for a less expensive set of pedals (e.g., Fanatec ClubSport Pedals V3), or forgoing the motion platform. However, avoid compromising on the wheelbase and CPU, as these are crucial for the overall experience.

Tips: Fine-Tuning Your Setup

Here are some final tips to help you get the most out of your F1 sim rig:

• Upgrading to the NVIDIA RTX 4090: If you want the ultimate performance, consider upgrading to the RTX 4090. You'll need a higher wattage power supply (1200W or more) and a case with excellent airflow.
• Cable Management: Proper cable management is essential for a clean and organized sim rig. Use cable ties and Velcro straps to keep cables tidy and out of the way.
• Graphics Settings Optimization: Experiment with different graphics settings in F1 23 and Assetto Corsa to find the optimal balance between visual quality and performance. Disable unnecessary effects to improve frame rates.
• FFB Clipping: Monitor the FFB output in the game's telemetry to ensure that it's not clipping. Reduce the gain if necessary.
• VR Troubleshooting: If you experience VR issues, try reducing the graphics settings, updating your drivers, and ensuring that your VR headset is properly calibrated.
• Dedicated USB Hubs: Use dedicated USB hubs for your sim racing peripherals to ensure optimal performance and prevent USB bandwidth issues.

Assetto Corsa screenshot at Monza with the RSS Formula Hybrid 2023 mod, showcasing the visual detail and realism achievable with the right setup.

Hook + Scene + Twist (Viral Video Idea):

Imagine this: You're barreling into the Rettifilo chicane at Monza in F1 23 using a Valve Index VR Kit. The motion platform violently reacts to the curb strikes, enhanced by Dolby Atmos-rendered, authentic F1 engine audio. Suddenly, the car enters a violent tank slapper on the exit, barely avoiding disaster. A smooth zoom transition reveals a high-speed telemetry overlay depicting brake, throttle, and steering inputs during the chicane. This isn't just a game; it's a visceral experience.

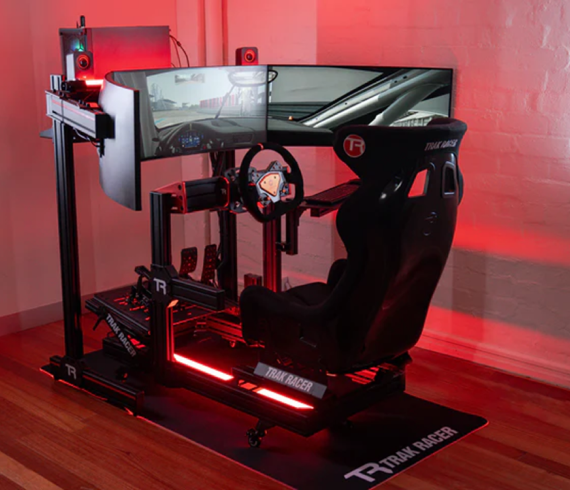

Complete Formula 1 racing simulator setup with triple Samsung Odyssey G5 monitors, showcasing a fully immersive racing environment.

Conclusion: The Pursuit of Perfection

Building a dedicated F1 racing simulator rig is a journey, not a destination. It's a continuous process of refinement and optimization. But with the right hardware, software, and techniques, you can create an experience that is truly transformative. So, buckle up, hit the track, and chase the ultimate F1 immersion.
