Building the Ultimate 1440p/165Hz Gaming Rig: A XenGamer.

So, you're ready to ascend to the glorious heights of 1440p gaming with buttery-smooth 165Hz refresh rates? Excellent choice. It's the sweet spot between resolution and speed, offering a significantly sharper image than 1080p without demanding the monstrous horsepower required for 4K. As a seasoned PC builder, I'm here to guide you through selecting the perfect components for a balanced and powerful 1440p/165Hz gaming machine. This isn't just a parts list; it's a roadmap to maximizing your gaming experience, minimizing bottlenecks, and future-proofing your investment.

Purpose: The 1440p/165Hz Sweet Spot

This build is laser-focused on delivering a premium 1440p gaming experience at a high refresh rate. We’re aiming for consistently smooth gameplay in demanding titles, taking full advantage of a 165Hz monitor. While it's primarily for gaming, the components are also capable of handling moderate content creation tasks like video editing and streaming, though those aren't the primary focus. This build aims to achieve high to ultra settings in most modern games, with frame rates hovering around or above that 165Hz mark, offering a truly immersive and competitive edge.

Core Components: The Heart of the Machine

Let's dive into the critical components that will power this beast. We’ll discuss performance, justification, and potential alternatives where appropriate.

CPU: AMD Ryzen 7 7700X

• Architecture: AMD Zen 4 (Ryzen 7000 Series)
• Cores/Threads: 8 Cores / 16 Threads
• Clock Speed: Base Clock: 4.5 GHz / Boost Clock: Up to 5.4 GHz

The Ryzen 7 7700X is the ideal CPU for this build for several reasons. Its Zen 4 architecture provides excellent single-core performance, crucial for high frame rates in gaming. Eight cores are plenty for handling modern games and offer decent multi-tasking capabilities for streaming or other background applications. While the Ryzen 7 7800X3D is the absolute king of gaming CPUs right now, the 7700X offers a significantly better price-to-performance ratio, especially when factoring in the cost of a cooler (which we'll get to). An Intel Core i7-13700K is a comparable alternative, but the AM5 platform offers a more promising upgrade path moving forward.

GPU: NVIDIA GeForce RTX 4070

• VRAM: 12GB GDDR6X
• Architecture: NVIDIA Ada Lovelace
• Performance: Excellent 1440p performance, ray tracing capabilities

The RTX 4070 is the workhorse of this build. Its 12GB of GDDR6X VRAM ensures it can handle the textures and assets of modern games at 1440p without bottlenecking. The Ada Lovelace architecture offers significant performance improvements over the previous generation, and its DLSS 3 frame generation technology can provide a substantial FPS boost in supported games. While an AMD Radeon RX 7800 XT is a strong competitor, the RTX 4070's superior ray tracing performance and DLSS features make it the better choice for a balanced gaming experience.

RAM: 32GB DDR5 5600MHz CL36

• Capacity: 32GB (2x16GB)
• Speed: 5600MHz
• Timings: CL36

32GB is the sweet spot for modern gaming, providing ample headroom for demanding titles and background applications. DDR5 5600MHz offers a significant performance boost over DDR4, and the CL36 timings strike a good balance between speed and cost. Faster RAM with tighter timings would offer a marginal performance increase, but the price premium isn't worth it for this build. Ensure your motherboard supports the chosen RAM speed.

Motherboard: ASUS ROG STRIX B650-A GAMING WIFI

• Chipset: AMD B650
• Form Factor: ATX
• Key Features: PCIe 5.0 support, robust VRM, Wi-Fi 6E

The ASUS ROG STRIX B650-A GAMING WIFI is a fantastic motherboard for this build. The B650 chipset offers excellent value, providing most of the features of the higher-end X670 chipset without the added cost. Its robust VRM ensures stable power delivery to the CPU, even under heavy loads. PCIe 5.0 support future-proofs the system for next-generation GPUs and SSDs. The built-in Wi-Fi 6E is a welcome addition for wireless connectivity.

Storage: 1TB NVMe PCIe Gen4 SSD

• Type: NVMe SSD
• Capacity: 1TB
• Read/Write Speeds: Up to 5000 MB/s read, 4200 MB/s write

A fast NVMe SSD is crucial for snappy system responsiveness and quick game loading times. A 1TB drive provides ample space for the operating system, essential applications, and several of your favorite games. Ensure the SSD is PCIe Gen4 for optimal performance. While a Gen5 SSD would offer even faster speeds, the real-world difference is often negligible for gaming, and the price premium is significant. Consider adding a secondary 2TB HDD for mass storage of less frequently accessed files.

PSU: Corsair RM750x (750W)

• Wattage: 750W
• 80+ Efficiency Rating: 80+ Gold

A reliable power supply is the backbone of any gaming PC. The Corsair RM750x is a high-quality, fully modular PSU with an 80+ Gold efficiency rating. 750W provides ample headroom for the components in this build, even with potential overclocking. Always choose a reputable brand and ensure the PSU has sufficient wattage to handle your system's power draw. Use a PSU calculator to estimate your power requirements, and always add a buffer of at least 100W. Underspeccing your PSU can lead to system instability and even damage.

Case: Fractal Design Meshify 2 Compact

• Form Factor: Mid-Tower
• Airflow Design: Excellent
• Aesthetic Features: Clean, minimalist design

The Fractal Design Meshify 2 Compact is an excellent case for this build, prioritizing airflow and ease of use. Its mesh front panel allows for unrestricted airflow, keeping components cool under heavy loads. The compact size makes it suitable for smaller spaces, while still offering ample room for cable management. The clean, minimalist design looks great in any setup.

Optional Add-ons: Enhancing the Experience

While the core components form the foundation, these add-ons can significantly enhance your gaming experience.

Cooling: Noctua NH-D15S CPU Cooler & Additional Case Fans

The Ryzen 7 7700X can run hot, so a high-quality CPU cooler is essential. The Noctua NH-D15S is an air cooler that rivals many liquid coolers in performance, offering excellent cooling with low noise levels. Add two additional 140mm case fans (one intake, one exhaust) to further improve airflow and keep temperatures in check. Effective cooling is crucial for maintaining optimal performance and preventing thermal throttling, especially during long gaming sessions.

Peripherals: Logitech G Pro X Superlight, Razer BlackWidow V3, HyperX Cloud Alpha

• Mouse: Logitech G Pro X Superlight (low latency, lightweight)
• Keyboard: Razer BlackWidow V3 (mechanical, tactile feedback)
• Headset: HyperX Cloud Alpha (comfortable, excellent sound quality)

These peripherals offer a blend of performance, comfort, and value. The Logitech G Pro X Superlight is a top-tier gaming mouse known for its low latency and lightweight design. The Razer BlackWidow V3 provides a tactile mechanical keyboard experience, and the HyperX Cloud Alpha offers excellent sound quality and comfort for extended gaming sessions. Prioritize low-latency peripherals for competitive gaming.

Monitor: Gigabyte M27Q

• Resolution: 2560x1440 (1440p)
• Refresh Rate: 170Hz (Overclocked)
• Panel Type: IPS

The Gigabyte M27Q is an excellent 1440p gaming monitor with a high refresh rate and a fast response time. Its IPS panel offers vibrant colors and wide viewing angles. Look for a monitor with Adaptive Sync (FreeSync or G-Sync Compatible) to eliminate screen tearing and stuttering.

Accessories: CableMod Cable Extension Kit, Fan Controller, RGB Strips

A CableMod cable extension kit can significantly improve the aesthetics of your build, making cable management easier and cleaner. A fan controller allows you to adjust fan speeds to optimize cooling performance and noise levels. RGB strips can add a touch of personalization to your system.

Performance Expectations: What to Expect

This build is designed to deliver a consistently smooth 1440p/165Hz gaming experience. Here are some realistic performance expectations:

• Cyberpunk 2077: 1440p, High settings, Ray Tracing off: 90-110 FPS. With DLSS Quality Mode: 120-140 FPS.
• Call of Duty: Warzone: 1440p, High settings: 150-180 FPS.
• Assassin's Creed Valhalla: 1440p, Ultra settings: 80-100 FPS.

These numbers are estimates based on my own experience and benchmarks from reputable sources like Gamers Nexus and Hardware Unboxed. Actual performance may vary depending on the specific game, settings, and drivers. Running 3DMark Time Spy will give you a good overall indication of your system's performance. Expect a score in the 14000-15000 range with this build.

Cost/Value Analysis: Is It Worth It?

This build will likely cost around $1500-$1800, depending on current prices and availability. While it's not a budget build, it offers excellent value for its performance. You're getting a machine capable of delivering a premium 1440p gaming experience for years to come. If your budget is lower, consider downgrading the GPU to an RTX 3060 Ti or RX 6700 XT.

Tips: Maximizing Performance and Avoiding Pitfalls

• Upgrade Path: The AM5 platform offers a promising upgrade path for future CPUs. Upgrading the GPU in a few years will be the most significant performance boost.
• Compatibility: Ensure your RAM is compatible with your motherboard's QVL (Qualified Vendor List).

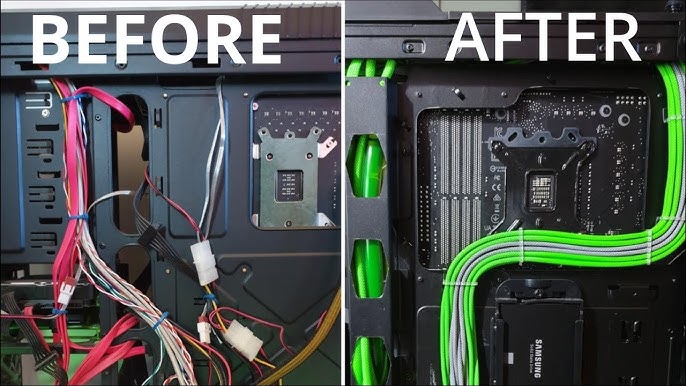

• Cable Management: Take your time with cable management. A clean build not only looks better but also improves airflow. Use cable ties and Velcro straps to keep cables organized.

Final Thoughts: Game On!

Building a PC can seem daunting, but with careful planning and the right components, it's a rewarding experience. This 1440p/165Hz gaming rig offers a fantastic balance of performance, features, and value. With this guide, you should be well-equipped to build a machine that will provide you with countless hours of immersive gaming. So, gather your parts, clear your workspace, and get ready to game on!
